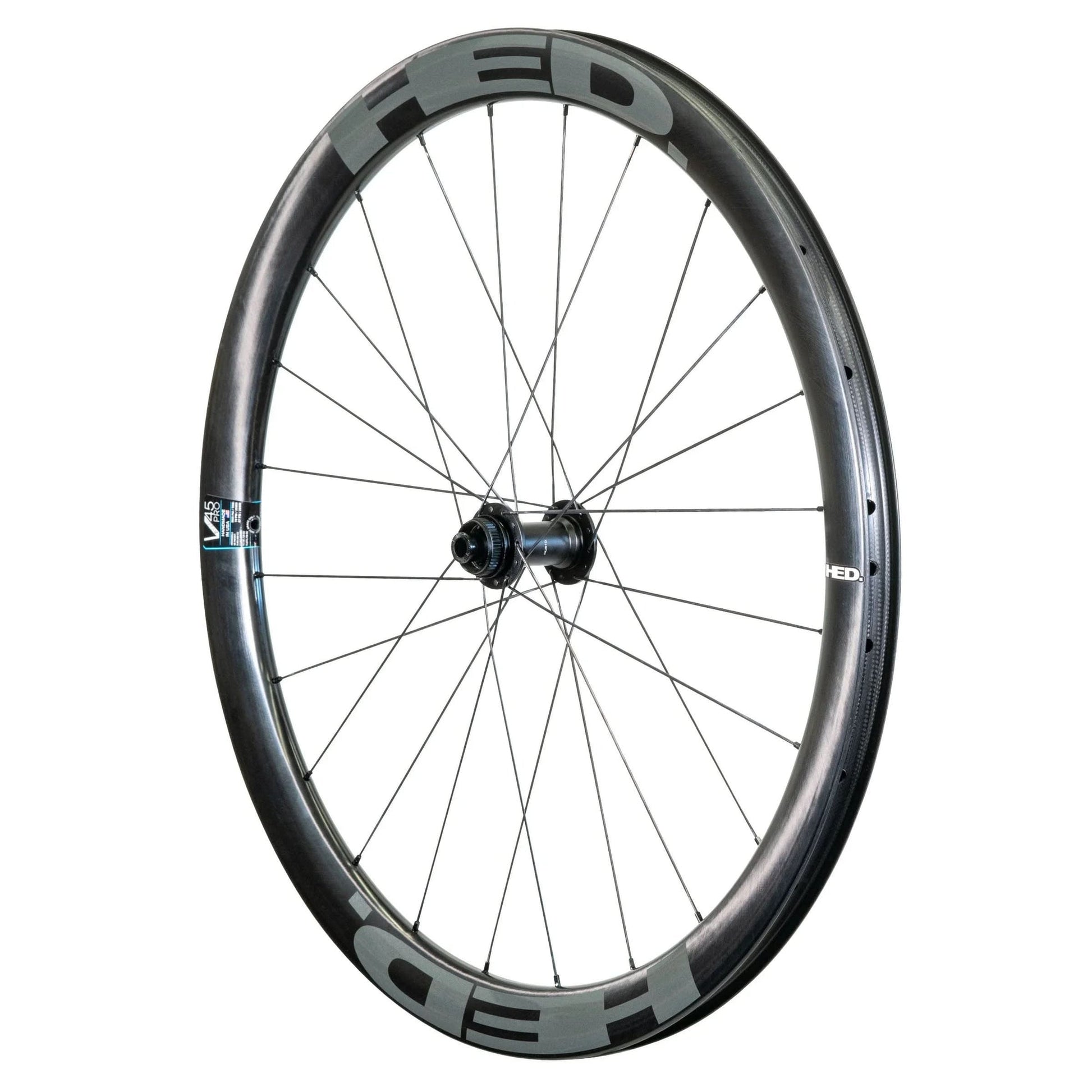

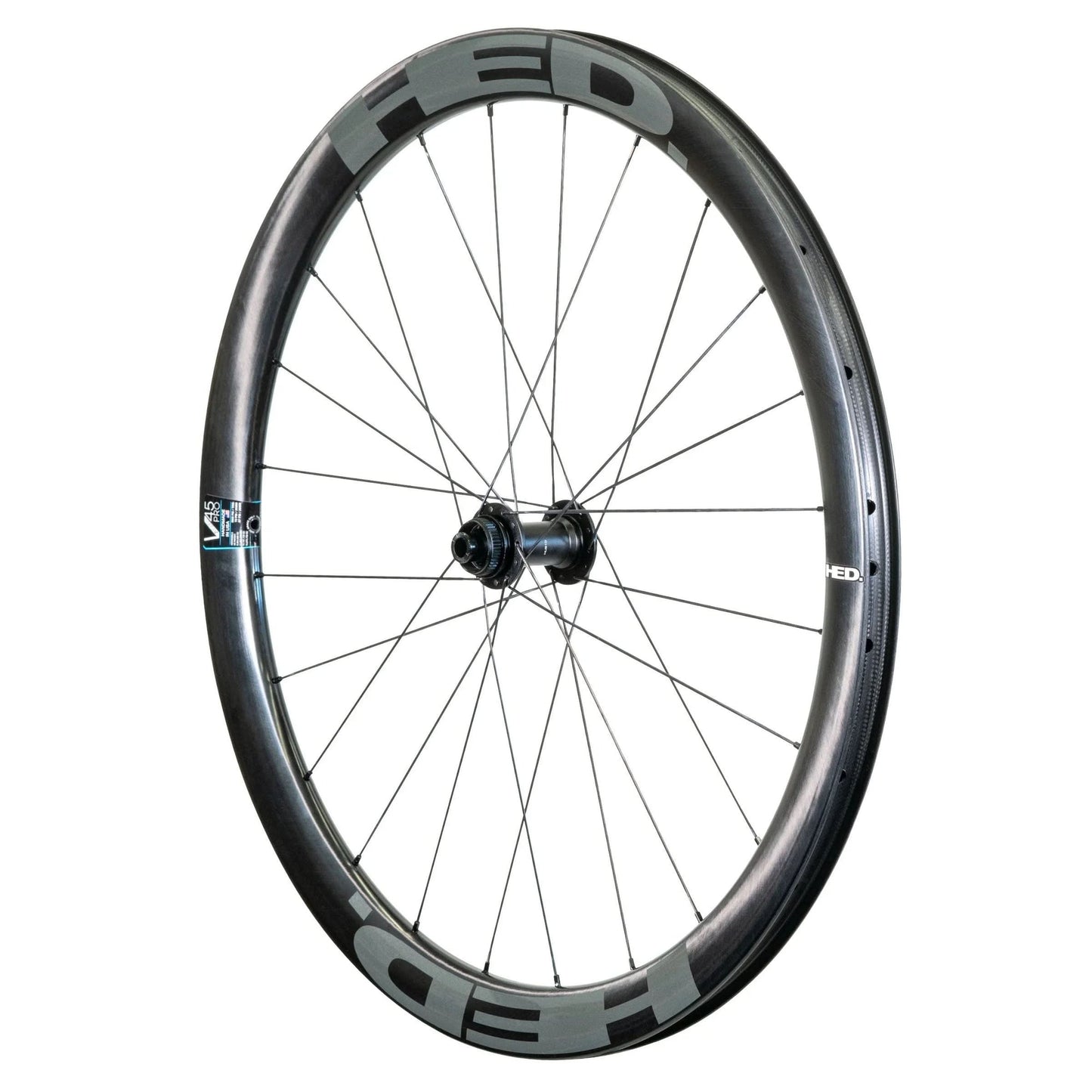

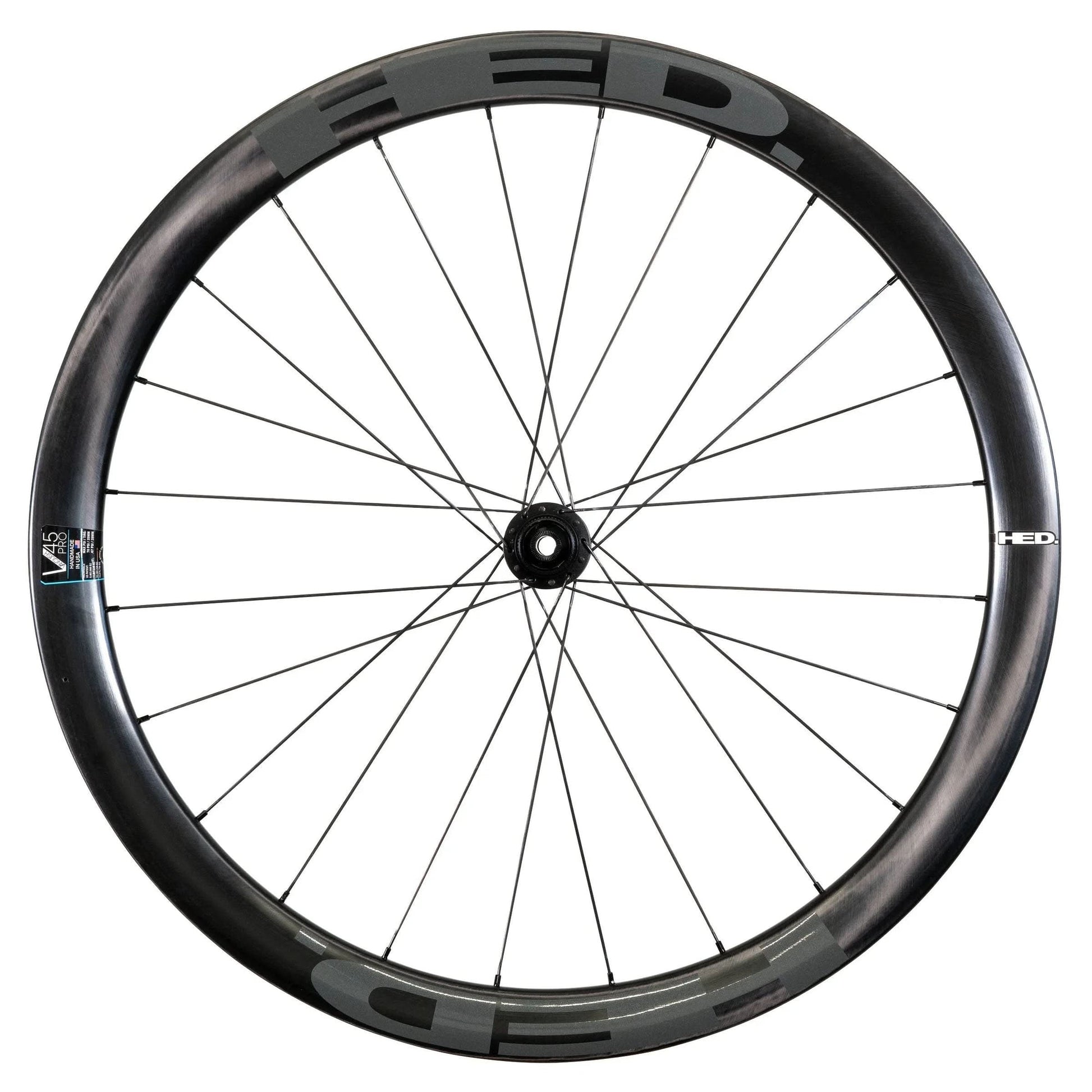

HED VANQUISH RC45 PERFORMANCE FRONT
HED VANQUISH RC45 PERFORMANCE FRONT
Couldn't load pickup availability
The Vanquish Pro Series is HED’s most advanced wheelset, a full carbon, disc brake specific platform engineered for world-class performance and handmade in the U.S.A.
Proven Speed.
Every Vanquish Pro rim is molded and finished by hand in Minnesota. From raw carbon layup to quality control, each wheel passes through multiple stages of inspection to ensure elite-level performance. The result? A fast, stable, rim built on more than 35 years of HED’s aerodynamic leadership.
HED’s Fastest Wheel. Ever.
The Vanquish Pro Series delivers unmatched aerodynamic efficiency. These wheels are designed to cut through the wind and deliver a fast experience from start to finish.
Built for Disc Brakes.
Designed exclusively for disc brakes, each wheel features HED's Pro Centerlock hubs and a tubeless-compatible rim bed. The internal width pairs with today’s wider road tires, reducing rolling resistance while improving grip and control, even in crosswinds.
WHATS IN THE BOX?
WHATS IN THE BOX?
– Tubeless Tape (applied from factory)
– Tubeless Valves
– Valve Hole Decals x4 (aero disc only)
VANQUISH PRO 45 SPECS
VANQUISH PRO 45 SPECS
Vanquish 45 Pro Overview:
Intended Use: Road Race/All-Road
Tubeless Compatible
Inner rim width: 22.4mm
Optimal Tire Size: 28c
Rim Specs:
Rim Weight: 415g ± 10g
Internal Width: 22.4mm
External Width: 30.9mm
Depth: 45mm
Hole Count: 24
ERD (Includes Washers): 555
Wheelset Build:
Hubs:
Front Hub: 12x100mm axle. Centerlock
Bearing: EZO Japan 6902RS x 2
Spokes:
Sapim CX-ray, hooked
Wheelset Weights:
Front: 701 Grams
TECHNICAL NOTES
TECHNICAL NOTES
1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.
2. Tire pressure = 70psi MAX
3. Freehub Note: *Campagnolo requires a longer lockring to safely secure 10/11/12 speed cassettes to N3W freehubs. Cassette dimensions vary, not all Campy cassettes will work with the N3W body on Hed hubs.
TIRE PRESSURE
TIRE PRESSURE
Max Use:
25mm tire: 72 psi / 5 bar
28mm tire: 72 psi / 5 bar
